Dosing stations

Complete storage and dosing stations for chemical products


Dosing stations

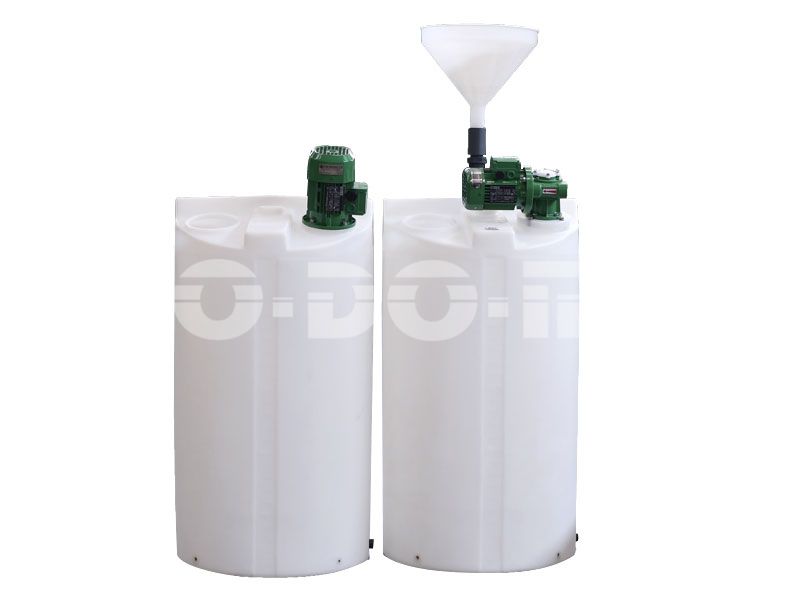

PRO-DO-MIX® storage solutions are designed to store chemical products, guaranteeing the homogeneity of the liquid and avoiding the settlement of solids in the liquid.
The manufactured storage tanks are customizable and allow plug & play installation, reducing installation and start-up costs on site.

Tank size
[lt]
Dimensions Ø x H
[mm]
Opening Ø
[mm]
50 410×465 120
115 490×660 180
120 DOSAPAK 480×680 140
200 620×795 180
250 DOSAPAK 600×1100 140
300 710×900 180
500 870×1000 180
500 DOSAPAK 820×1220 140
1000 1100×1200 180
1250 1150×1285 240
1600 1210×1600 370

Main features:

> HDPE (High Density Polyethylene) construction material for increased resistance to chemical etching;

> Max temperature 60 °C;

> Maximum weight allowed 50 kg;

> Suitable for the storage of products with specific weight up to 1.2 kg/dm3;

> Increased thickness DOSAPAK version for storing products with specific weight up to 1.4 kg/dm3 (stabilizing feet, inclined agitator support with studs);

> Different types of agitator configurable according to the liquid stored.

Options:

> Dosing funnel, capacity 5 litres, PVC material;

> Throttle valves;

> Side viewing level, PVC material.
