HEAVY SLURRY AGITATOR multiple impellers


Gearbox
various
Impeller type
3PM-0030
Motor power
3 ÷ 18,5
Output speed
30 ÷ 100
Impeller Ø
1000 ÷ 3500
Max shaft length
6000
Max weight
500 ÷ 1200

The multiple impellers design is particularly suitable to fit all vat geometries (high, narrow tank)

• Perfect in order to deal with very high specific gravity and viscosity as well as in presence of blocks of product (“icebergs”)

• The mixing power is spread into the whole vat and the mixing regime can be turbulent when needed, with high transfer rate

• That results in easy block break-up, good homogenization and no product sedimentation

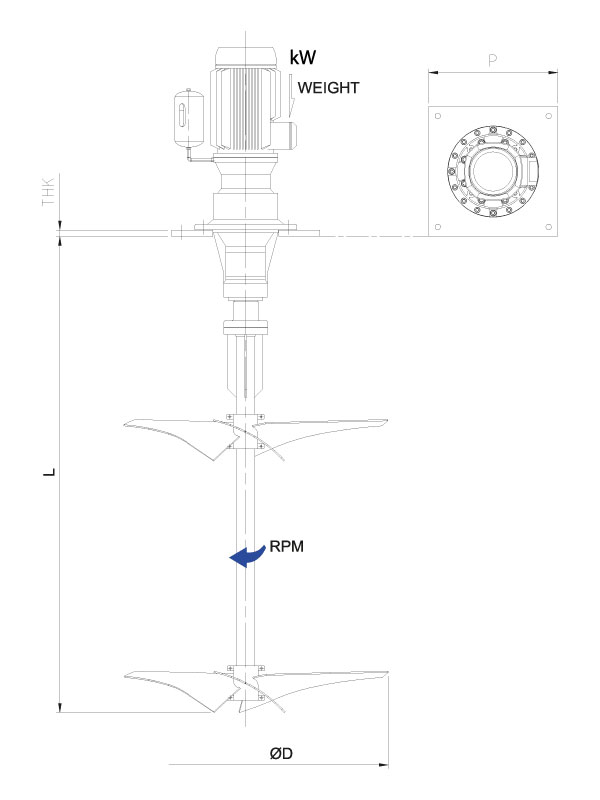

Model KW RPM Ø D mm L maxi mm
SCL.30101 3 98 2x1050 2500
SCL.40111 4 91 2x1150 2900
SCL.40121 4 84 2x1200 2500
SCL.40131 4 73 2x1300 3200
SCL.40141 4 73 2x1350 2500
SEL.55141 5,5 69 2x1450 3700
SEL.55161.280 5,5 62 2x1550 2800
SEL.55161.400 5,5 59 2x1600 4000
SEL.55181 5,5 49 2x1800 2800
SEL.75181 7,5 53 2x1800 4200
SEL.75191 7,5 49 2x1900 2800
SEL.75211.470 7,5 42 2x2050 4700
SEL.75211.380 7,5 42 2x2050 3800
SEL.92201 9,2 49 2x2000 4900
SEL.92221.380 9,2 42 2x2150 3800
SEL.92221.470 9,2 42 2x2200 4700
SEL.92221.390 9,2 42 2x2200 3900
SEL.92231 9,2 40 2x2270 4800
SEL.92241 11 36 2x2400 3800
SEL.A1281 11 30 2x2800 4500
SEL.A5271 11 36 2x2700 4500
SEL.A8281 11 36 2x2800 4000
SEL.A8291 11 36 2x2850 4400
The data indicated are not binding, PRO-DO-MIX® could change them at any time

Want more information?


    Privacy Disclaimer *Read and understood
    Marketing activities *I consentI do not consent

    3PM-0030 EVOLUTION

    Impellers with high hydrodynamic profile

    Three-blade impeller with high hydrodynamic profile. It is the “evolution” of Hurricane. Its internal velocity gradient, constant from the centre to the edge of the blade, allows the positioning of an impeller with large diameter very close to the bottom of the tank. That makes Evolution perfect for applications that require the mixer’s continuous operation during the total draw-off of the tank.

    It can be manufactured with different diameters, 1650 to 3500 mm.

    A completely disassemblable option is available as well, to ease the entering through the tank manhole.

    3PM-0030 EVOLUTION
