GROUT / SLURRY AGITATOR


Gearbox
various
Impeller type
various
Motor power
0,55÷130
Output speed
30 ÷ 130
Impeller Ø
500 ÷ 2000
Max shaft length
6000
Max weight
700 ÷ 1200

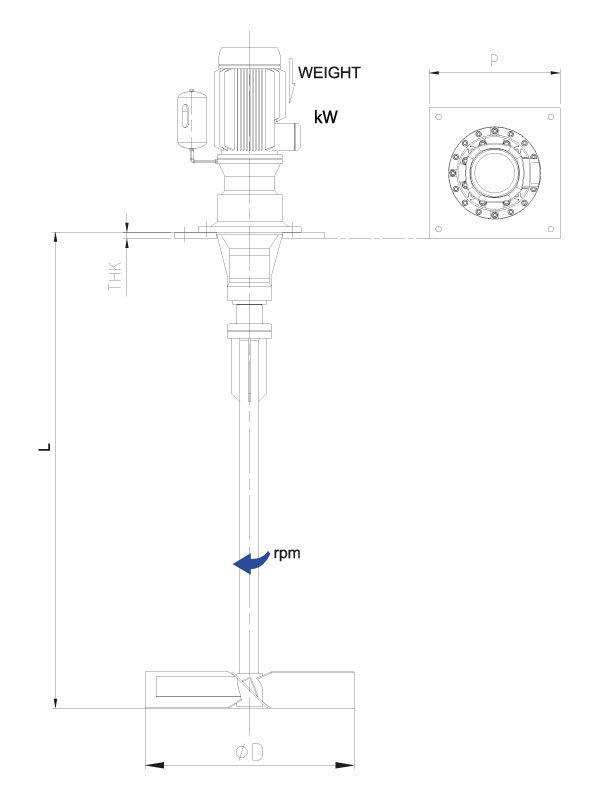

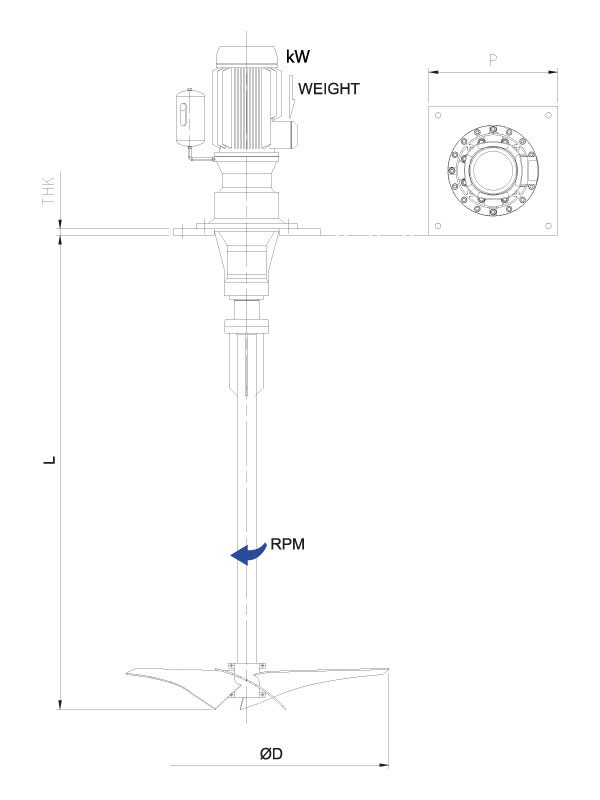

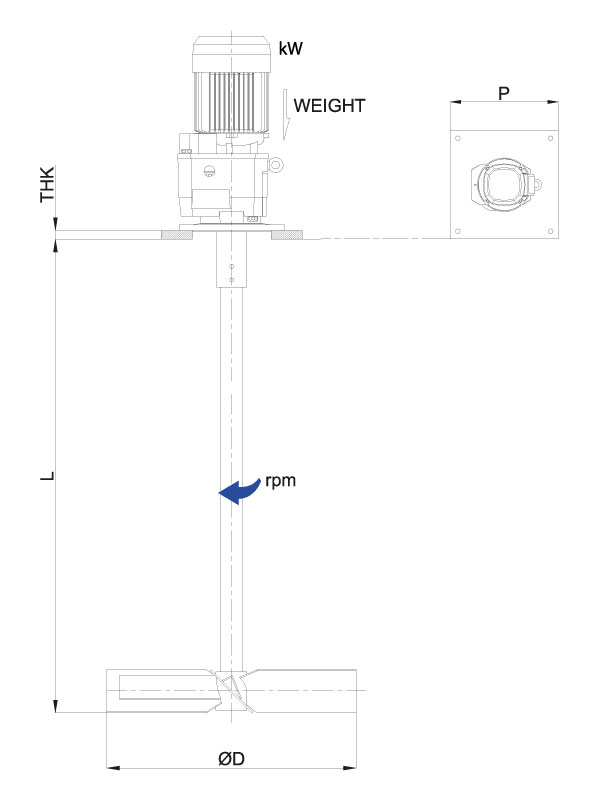

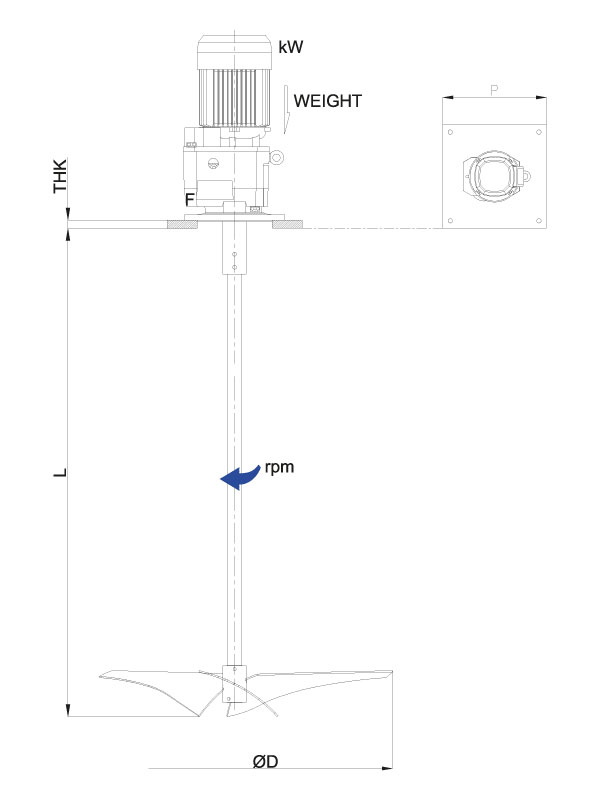

Agitator range for the suspension and homogenization of slurries, drilling mud and grout

• Up to 200 m3 volume mixing capacity with a single agitator per tank

• High-efficiency impellers for perfect mixing

Model KW RPM Ø D mm L maxi mm
SCC.11061 1,1 90 600 1600
SCC.11062 1,1 120 600 2150
SCP.15071 1,5 100 700 2300
SCT.15091 1,5 130 900 2500
SCP.22081 2,2 80 800 2500
SCT.22111 2,2 100 1100 2600
SCT.30121 3 100 1200 2300
SCT.40131 4 100 1300 2700
SCT.40132 4 100 1300 3000
SCT.40142 4 85 1400 2500
SCT.40133 4 100 1300 3000
SCT.55131 5,5 113 1300 2900
SCP.40141 4 42 1400 1900
SCP.40153 4 40 1500 2600
SEP.55161 5 36 1600 2600
SEP.75161 5 39 1600 3000
SEP.75171 7,5 39 1700 2200
SEP.75172 7,5 39 1700 2600
SEP.75151 7,5 46 1500 3400
SEP.92161 7,5 46 1600 3000
SEP.92171 9,2 39 1700 2600
SEP.92162 9,2 46 1600 3700
SEP.92172 9,2 39 1700 2600
SEL.92201 9,2 72 2000 2500
SEP.A1171 9,2 42 1700 3000
SEL.A1181 11 92 1850 3400
SEL.A1201 11 78 2000 2500
SEL.A1202 11 78 2000 3700
SEL.A1221 11 69 2200 2700
The data indicated are not binding, PRO-DO-MIX® could change them at any time
