HEAVY SLURRY AGITATOR one impeller


Gearbox
various
Impeller type
3PM-0030
Motor power
3 ÷ 18,5
Output speed
30 ÷ 100
Impeller Ø
1000 ÷ 3500
Max shaft length
6000
Max weight
500 ÷ 1200
  • Specially designed agitator range conceived for continuous, heavy duty operation (24/7/365)
  • Up to 200 m3 volume mixing capacity with a single agitator per tank
  • High-efficiency impeller for high-flow rate and optimal mixing performance

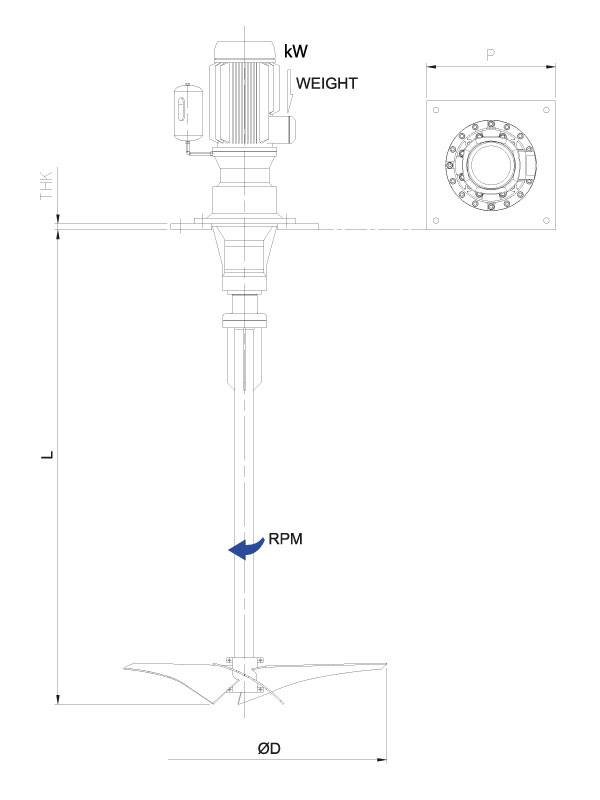

Model KW RPM Ø D mm L maxi mm
SCL.30121 3 98 1200 2500
SCL.40131 4 91 1300 2900
SCL.40141 4 84 1350 2500
SCL.40151 4 73 1500 3300
SCL.40161 4 73 1550 2500
SEL.55171 5,5 69 1680 3700
SEL.55181 5,5 62 1800 2800
SEL.55191 5,5 59 1850 4000
SEL.55211 5,5 49 2050 2800
SEL.75211 7,5 53 2050 4200
SEL.75221 7,5 49 2200 2800
SEL.75241 7,5 42 2400 3800
SEL.75241 7,5 42 2400 4700
SEL.92231 9,2 49 2320 4900
SEL.92251 9,2 42 2500 3800
SEL.92261 9,2 42 2530 4700
SEL.92251 9,2 42 2500 3900
SEL.92271 9,2 40 2620 4800
SEL.92281 9,2 36 2800 3800
SEL.A1321 11 30 3200 4500
SEL.A5311 15 36 3100 4500
SEL.A8321 18,5 36 3200 4000
SEL.A8331 18,5 36 3300 4400
The data indicated are not binding, PRO-DO-MIX® could change them at any time

Want more information?


    Privacy Disclaimer *Read and understood
    Marketing activities *I consentI do not consent

    3PM-0030 EVOLUTION

    Impellers with high hydrodynamic profile

    Three-blade impeller with high hydrodynamic profile. It is the “evolution” of Hurricane. Its internal velocity gradient, constant from the centre to the edge of the blade, allows the positioning of an impeller with large diameter very close to the bottom of the tank. That makes Evolution perfect for applications that require the mixer’s continuous operation during the total draw-off of the tank.

    It can be manufactured with different diameters, 1650 to 3500 mm.

    A completely disassemblable option is available as well, to ease the entering through the tank manhole.

    3PM-0030 EVOLUTION
