Sludge suspension

Heavy slurry agitators

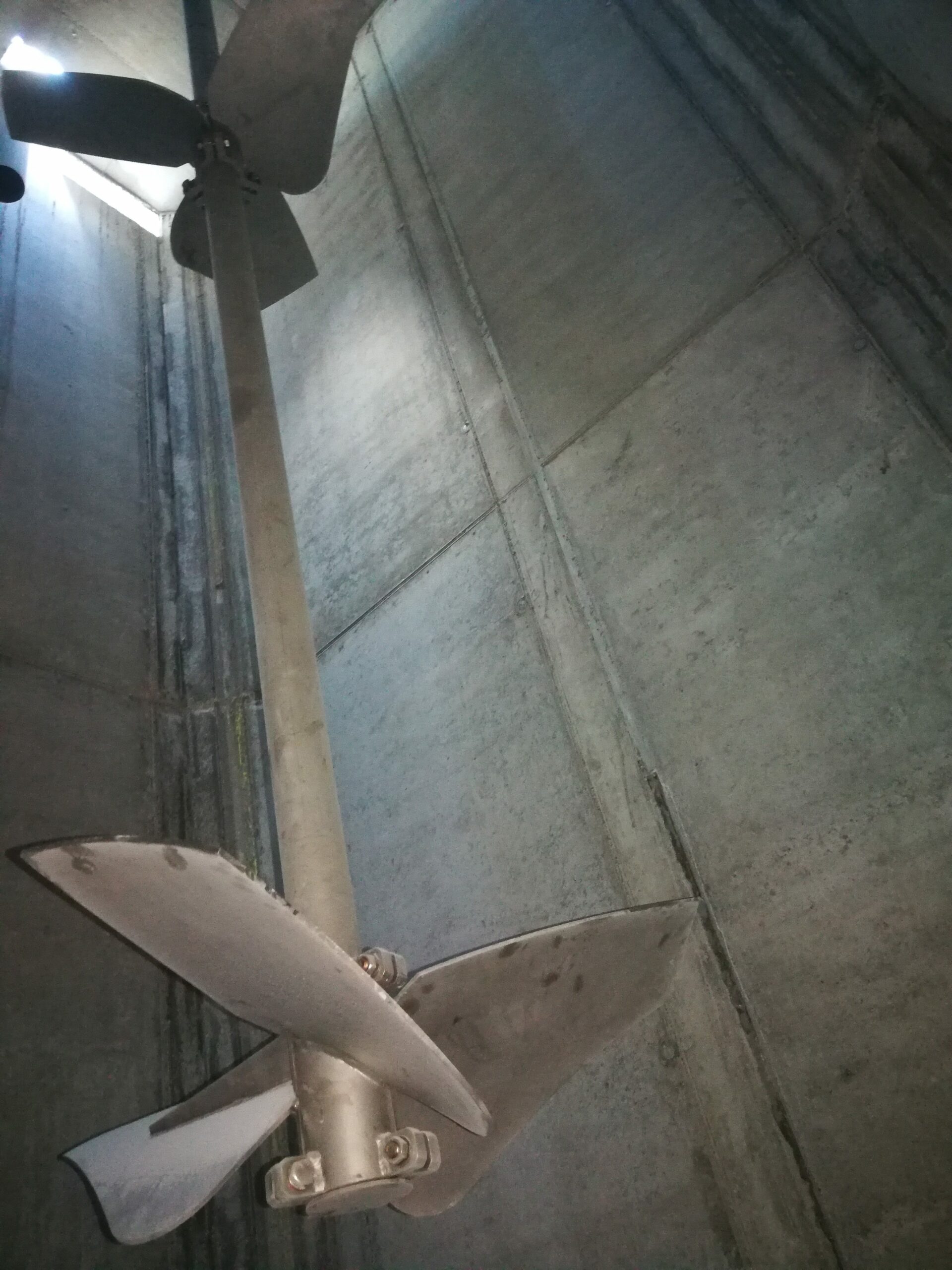

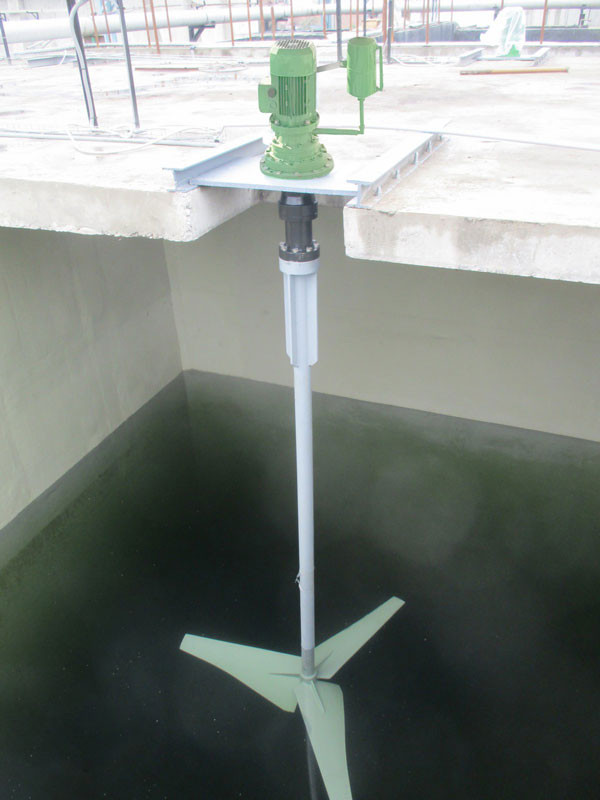

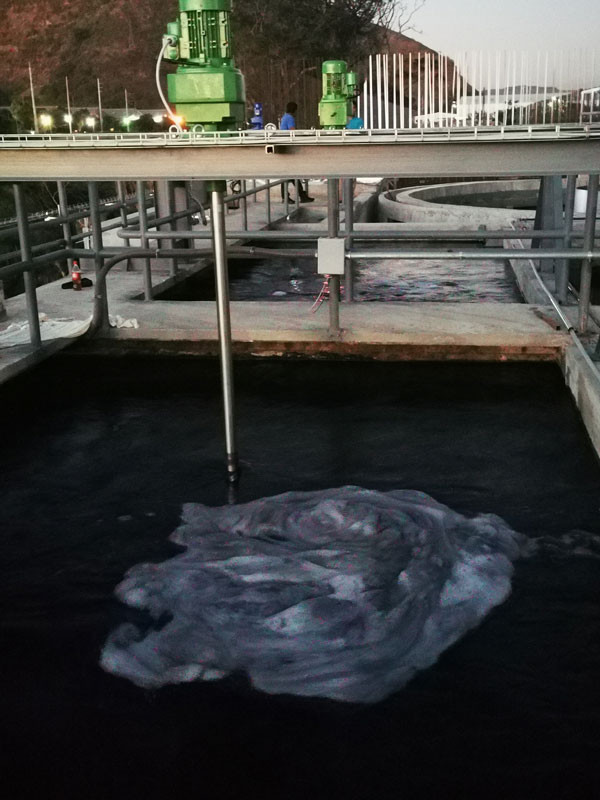

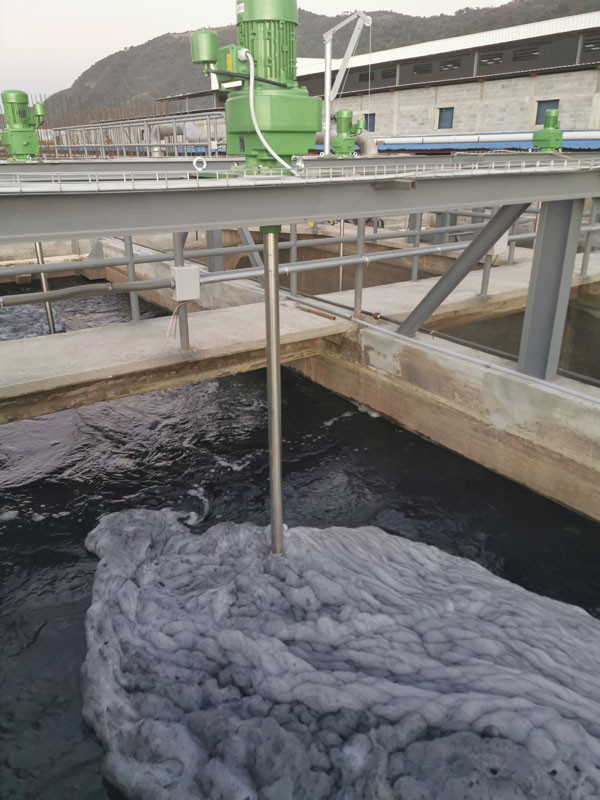

In the water treatment sector, the agitator is an essential component: when the wastewater flows into the slurry thickening tank, the liquid fraction is almost entirely treated, while the polluting fraction is agglomerated in the slurry.

This is where the agitator comes into play: it has the purpose of creating motion in the liquid so as to keep the slurry in suspension and avoid its settling to the bottom of the tank, but at the same time, it is sufficiently gentle to avoid its breaking and facilitate thickening.

The PRO-DO-MIX® 2PM-0650 and 3PM-0030 impellers for the larger tanks are perfectly suitable for this purpose, because they guarantee a high flow rate requiring very low equivalent power.

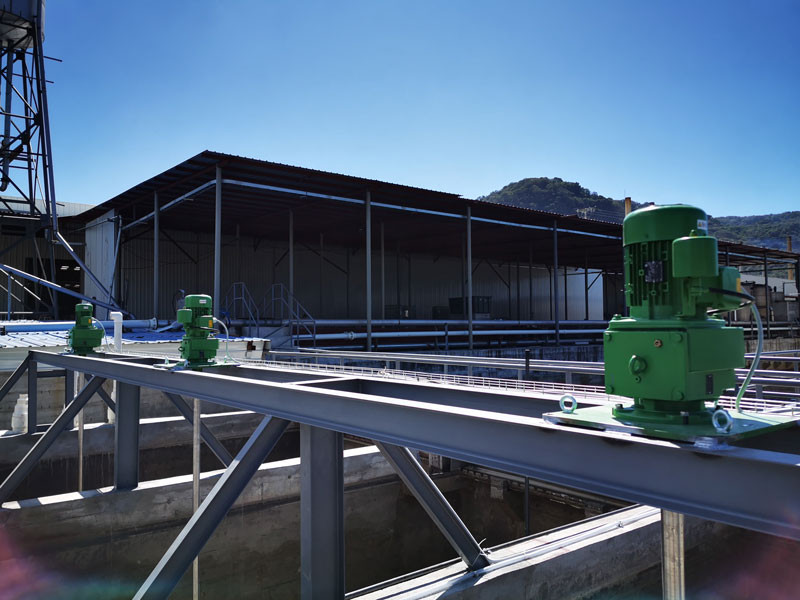

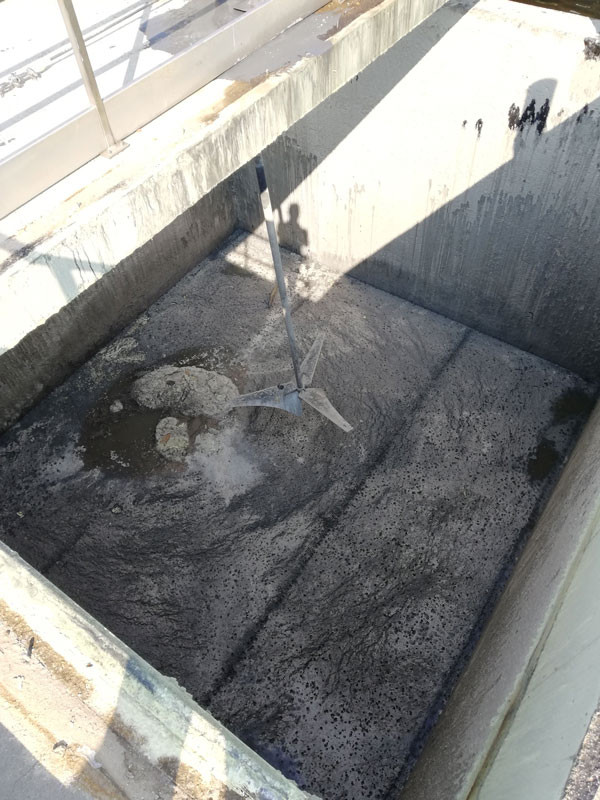

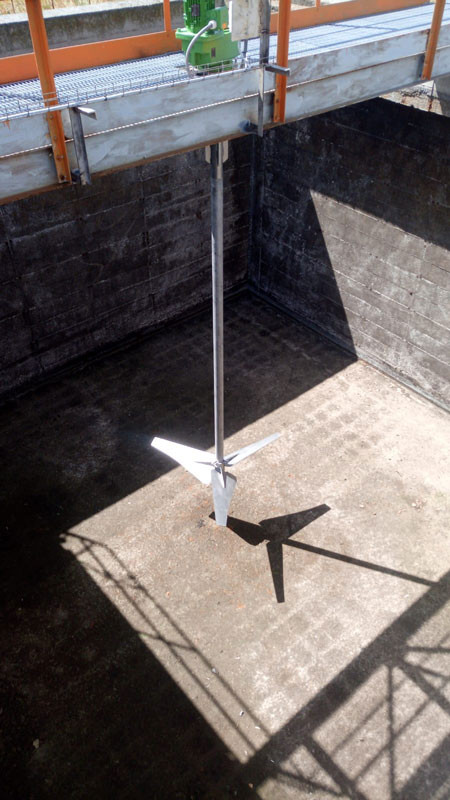

To view some of our installations, please browse the gallery.

Share On
Share On

2PM-0650 PREMIUM

Flocculation Mixer

Flocculant mixing system with two-blade impeller. Thanks to its high hydrodynamic profile with wide blade surface, has the highest flow rate at the lowest peripheral speed. This design is aimed to prevent the fluid coming out from one blade to immediately meet the second blade.

Therefore, it is perfect when managing very delicate applications, where the fluid needs to be handled very gently and carefully. That is why Premium is specific for flocculation.

It can be manufactured with different diameters, 800 to 3000 mm.

A completely disassemblable option is available as well, to ease the entering through the tank manhole.

2PM-0650 PREMIUM

3PM-0134 HURRICANE

Flash Mixing Impellers

High-efficiency three-blade impeller with high hydrodynamic profile. Thanks to its high flow rate, it is particularly suitable for flash mixing, sludge and solid suspension, equalization, etc.

It can be manufactured with different diameters, 900 to 1500 mm.

A completely disassemblable option is available as well, to ease the entering through the tank manhole.

3PM-0134 HURRICANE

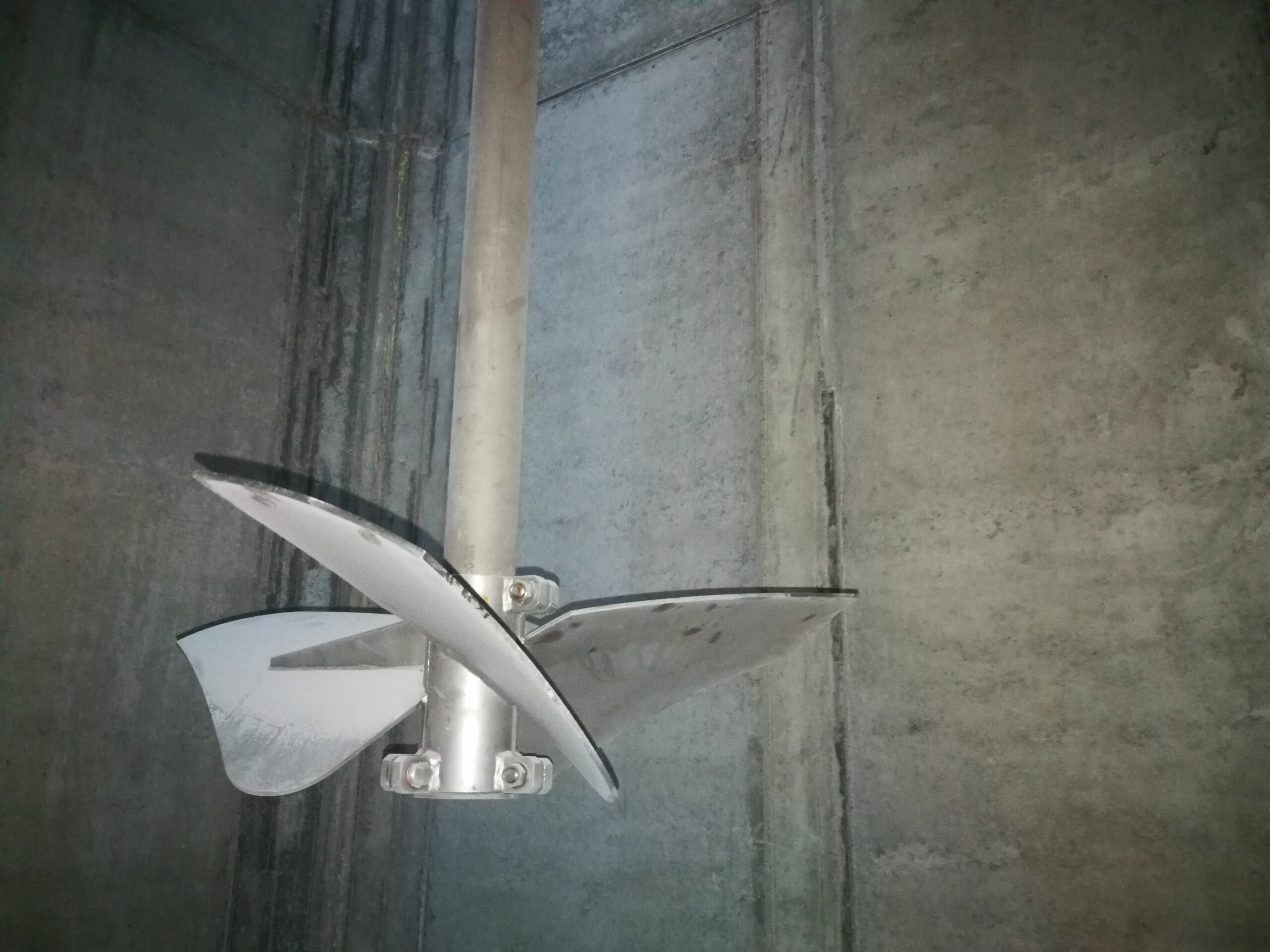

3PM-0030 EVOLUTION

Impellers with high hydrodynamic profile

Three-blade impeller with high hydrodynamic profile. It is the “evolution” of Hurricane. Its internal velocity gradient, constant from the centre to the edge of the blade, allows the positioning of an impeller with large diameter very close to the bottom of the tank. That makes Evolution perfect for applications that require the mixer’s continuous operation during the total draw-off of the tank.

It can be manufactured with different diameters, 1650 to 3500 mm.

A completely disassemblable option is available as well, to ease the entering through the tank manhole.

3PM-0030 EVOLUTION
