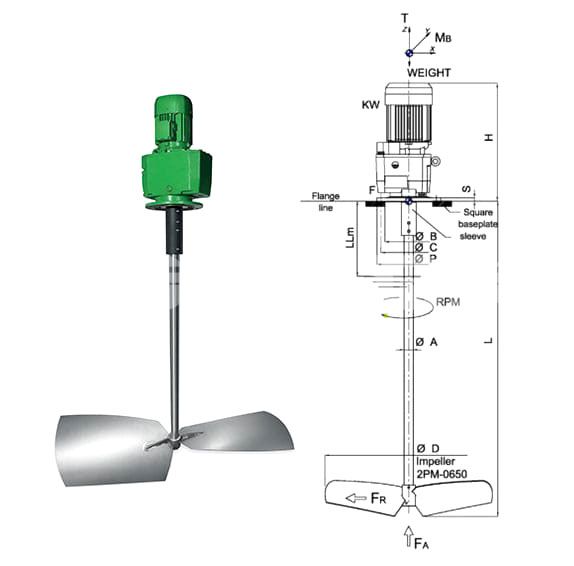

PRO-DO-MIX® ACR agitator is specially designed to ensure high flow rate with gentle mixing. It perfectly fits waste water applications, especially primary and secondary flocculation, thanks to the design of our 2PM-0650 Premium 2-blade high-efficiency impeller that grants several advantages and benefits compared to other flocculation systems (e.g. turbine agitator, gate impeller agitator):
For optimal performance in primary flocculation, our ACR agitator can be used with frequency inverter to regulate the output speed.
| Model ⇕ | KW ⇕ | RPM ⇕ | Ø D mm ⇕ | L maxi mm ⇕ |
|---|---|---|---|---|
| ACR.03081 | 0.37 | 35 | 800 | 3500 |
| ACR.03101 | 0.37 | 30 | 1000 | 3500 |
| ACR.03121 | 0.37 | 30 | 1200 | 2800 |
| ACR.05081 | 0.55 | 60 | 800 | 3000 |
| ACR.07101 | 0.75 | 50 | 1000 | 2500 |
| ACR.11121 | 1.1 | 40 | 1200 | 2100 |
Flocculant mixing system with two-blade impeller. Thanks to its high hydrodynamic profile with wide blade surface, has the highest flow rate at the lowest peripheral speed. This design is aimed to prevent the fluid coming out from one blade to immediately meet the second blade.
Therefore, it is perfect when managing very delicate applications, where the fluid needs to be handled very gently and carefully. That is why Premium is specific for flocculation.
It can be manufactured with different diameters, 800 to 3000 mm.
A completely disassemblable option is available as well, to ease the entering through the tank manhole.
