Loader

ACP

Vertical Agitator - Turbine Agitators


Gearbox
coaxial
Impeller type
4PBT45°
Motor power
0,25 ÷ 3
Output speed
100 ÷ 200
Impeller Ø
200 ÷ 800
Max shaft length
2500
Max weight
150

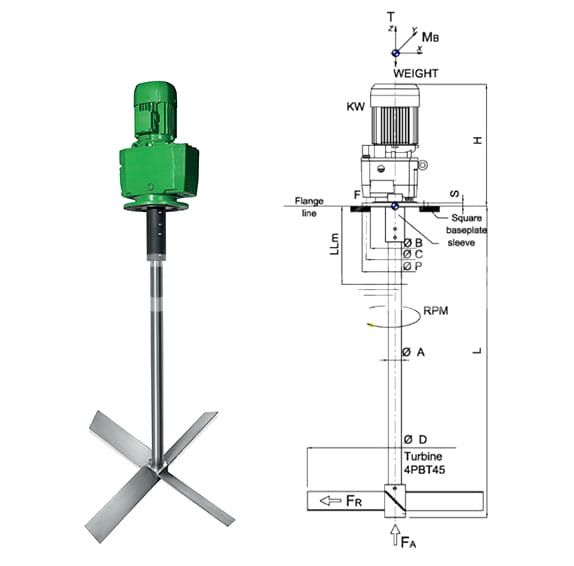

PRO-DO-MIX® ACP agitator with pitched blade turbine impeller is suitable for a wide range of applications, especially within chemico-physical WWTP. Its versatility, efficiency and cost-effectiveness make it a perfect solution for chemical dosing skids.

Its 4PBT45° paddle turbine, combined with different output speed, can be used in a broad range of processes including polyelectrolyte preparation, maturation and storage, pH adjustment and other chemical solution handling.

Model KW RPM Ø D mm L maxi mm
ACP.02021 0.25 100 200 1500
ACP.02031 0.25 140 300 1500
ACP.02032 0.25 130 350 1500
ACP.03021 0.37 200 200 1300
ACP.03031 0.37 170 350 1500
ACP.05051 0.55 130 500 1500
ACP.07052 0.75 110 500 2500
ACP.07061 0.75 110 600 2500
ACP.15071 1.5 110 700 2400
ACP.30081 3 100 800 2300
The data indicated are not binding, PRO-DO-MIX® could change them at any time

Want more information?


    Privacy Disclaimer *Read and understood
    Marketing activities *I consentI do not consent

    4PBT45°

    Pitched Blade Agitator

    It is widely used in a broad range of applications due to its efficiency and cost-effectiveness. Within Water Treatment, pitched blade impellers are perfect for polyelectrolyte preparation and maturation, primary neutralization and pH adjustment.

    It can be manufactured with different diameters, 200 to 2000 mm.

    A completely disassemblable option is available as well, to ease the entering through the tank manhole.

    4PBT45°
