AVP

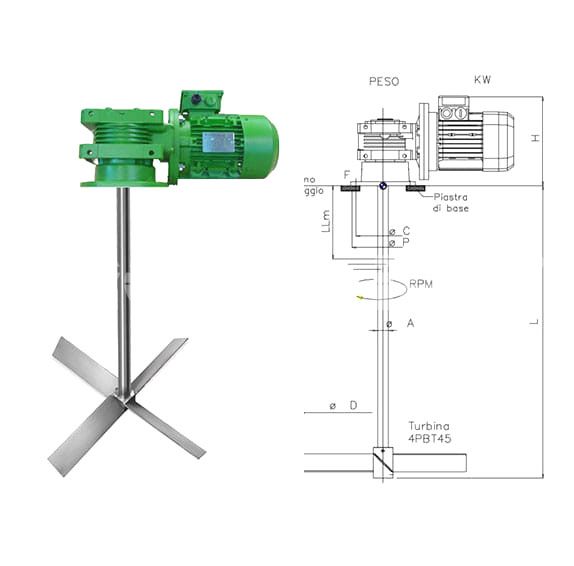

Vertical Agitator - Turbine Mixer


Gearbox
worm
Impeller type
4PBT45°
Motor power
0,18 ÷ 0,55
Output speed
25 ÷ 200
Impeller Ø
200 ÷ 350
Max shaft length
1350
Max weight
150

PRO-DO-MIX® AVP agitator is suitable for a wide range of applications, especially within chemico-physical WWTP. Its versatility, efficiency and cost-effectiveness make it a perfect solution for chemical dosing skids.

Its 4PBT45° paddle turbine, combined with different output speed, can be used in a broad range of processes including polyelectrolyte preparation, maturation and storage, pH adjustment and other chemical solution handling.

Model KW RPM Ø D mm L maxi mm
AVP.01021 0.18 25 200 1350
AVP.01022 0.18 70 200 1350
AVP.02021 0.25 100 200 1350
AVP.02022 0.25 140 200 1350
AVP.03021 0.37 200 200 1350
AVP.02031 0.25 140 300 1350
AVP.02032 0.25 140 350 1350
AVP.02033 0.25 70 350 1350
AVP.02034 0.25 25 350 1350
AVP.03031 0.37 200 350 1350
AVP.05031 0.55 200 350 1350
The data indicated are not binding, PRO-DO-MIX® could change them at any time

Want more information?


    Privacy Disclaimer *Read and understood
    Marketing activities *I consentI do not consent

    4PBT45°

    Pitched Blade Agitator

    It is widely used in a broad range of applications due to its efficiency and cost-effectiveness. Within Water Treatment, pitched blade impellers are perfect for polyelectrolyte preparation and maturation, primary neutralization and pH adjustment.

    It can be manufactured with different diameters, 200 to 2000 mm.

    A completely disassemblable option is available as well, to ease the entering through the tank manhole.

    4PBT45°
