ACC

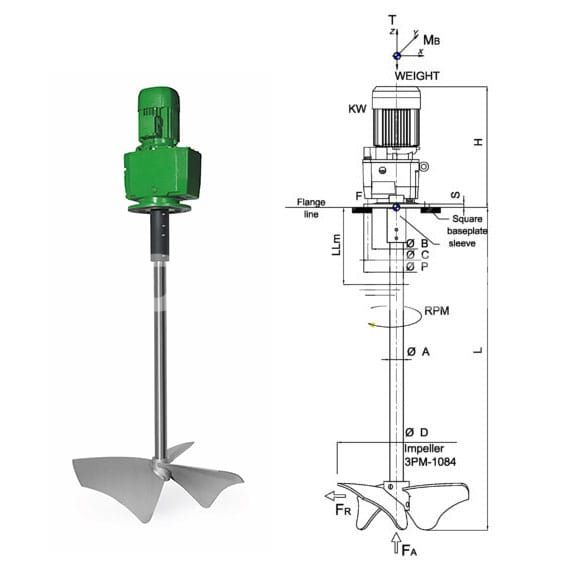

Vertical Agitator - 3 blade Impeller Mixer


Gearbox
coaxial
Impeller type
3PM-1084
Motor power
0,18 ÷ 3
Output speed
50 ÷ 350
Impeller Ø
200 ÷ 800
Max shaft length
3000
Max weight
200

PRO-DO-MIX® ACC agitator is suitable for an extensive range of application within wastewater treatment as well as other industries. Thanks to the particular design of 3PM-1084 Excellent 3-blade high-efficiency impeller, it is able to create high flow rate while ensuring energy efficiency, resulting in smooth mixing with low installed power.

This agitator produces a pumping effect, ensuring the fluid complete recirculation within the tank. This allows to keep the medium well homogenized in order to prevent product sedimentation.

That is why ACC agitator is perfect when dealing with polymer preparation and storage, lime milk preparation and storage, sludge suspension, as flow maker or for heavy slurry homogenisation.

Model KW RPM Ø D mm L maxi mm
ACC.01020 0.18 70 200 1200
ACC.01021 0.18 250 200 700
ACC.02021 0.25 350 200 1000
ACC.03021 0.37 220 200 1500
ACC.03022 0.37 220 250 1400
ACC.05021 0.55 290 250 1100
ACC.01031 0.18 70 300 1200
ACC.03031 0.37 200 300 1500
ACC.03032 0.37 230 300 1400
ACC.03033 0.37 200 350 1600
ACC.03041 0.37 70 400 2500
ACC.07041 0.75 170 400 1700
ACC.03051 0.37 60 500 2500
ACC.07051 0.75 125 500 1700
ACC.03061 0.37 50 600 3000
ACC.11061 1.1 90 600 1900
ACC.11062 1.1 120 600 2150
ACC.15071 1.5 100 700 2000
ACC.15072 1.5 100 700 2700
ACC.22081 2.2 80 800 2500
ACC.30081 3 100 800 3000
The data indicated are not binding, PRO-DO-MIX® could change them at any time

Want more information?


    Privacy Disclaimer *Read and understood
    Marketing activities *I consentI do not consent

    3PM-1084 EXCELLENT

    Industrial Mixing Impellers

    Three-blade impeller with high hydrodynamic profile. Within our industrial impeller models, it has the lowest torque for the same flow rate. Moreover, it can create the highest flow rate with the lowest peripheral speed.

    It is perfect as flow-maker, for high head values in recirculation.

    It can be manufactured with different diameters, 200 to 3500 mm.

    A completely disassemblable option is available as well, to ease the entering through the tank manhole.

    3PM-1084 EXCELLENT
