Loader

ALH

Vertical Agitator - Marine Propeller


Gearbox
NA
Impeller type
marine propeller
Motor power
0.37 ÷ 1,5
Output speed
900 / 1400
Impeller Ø
128 ÷ 160
Max shaft length
1500
Max weight
45

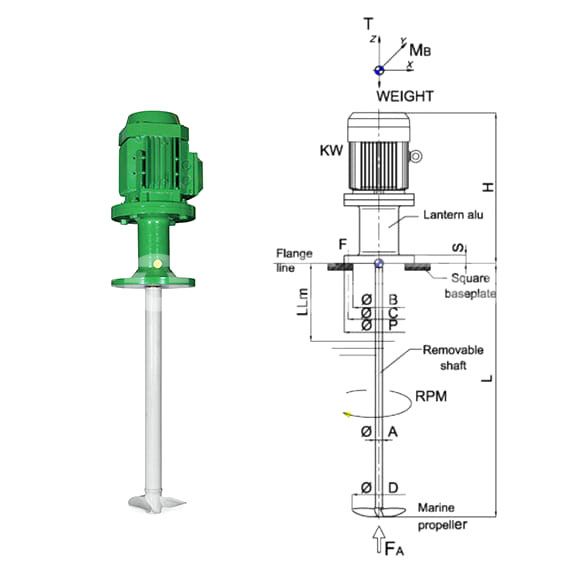

PRO-DO-MIX® ALH agitator is suitable for a wide range of applications that need fast mixing, especially within chemico-physical WWTP. Its mechanical construction with lantern house bearing and its cost-effectiveness make this vertical agitator a perfect solution for small heavy duty chemical dosing skids.

Its marine propeller, manufactured from casting in our proprietary mould, can have different diameters that, combined with different motor power (direct drive), can fit every tank.

Stainless steel (SS 316L) and polypropylene are the standard material of construction, depending on the chemical requirement.

A V-ring sealing option is also available to prevent chemical aggression when dealing with highly corrosive products.

Model KW RPM Ø D mm L maxi mm
ALH.05131 0.55 1400 128 1200
ALH.07141 0.75 1400 140 1500
ALH.15161 1.5 1400 160 1500
ALH.03136 0.37 900 128 1200
ALH.07146 0.75 900 140 1500
ALH.11166 1.1 900 160 1500
The data indicated are not binding, PRO-DO-MIX® could change them at any time

Want more information?


    Privacy Disclaimer *Read and understood
    Marketing activities *I consentI do not consent

    MARINE PROPELLER

    Helical Blade Mixer

    This helical type impeller is very versatile, generally installed in fast direct mixers. Very common in small preparations of chemicals.

    It is manufactured from casting in proprietary moulds.

    It can be manufactured with different diameters, 90 to 160 mm diameter.

    Available in 2 material options, polypropylene (PP) and stainless steel (SS 316L).

    MARINE PROPELLER
