Vertical Agitator - Flash mixing, sludge equalization and denitrification


Gearbox
coaxial
Impeller type
3PM-0134
Motor power
1,1 ÷ 4,0
Output speed
50 ÷ 100
Impeller Ø
900 ÷ 1500
Max shaft length
3500
Max weight
220

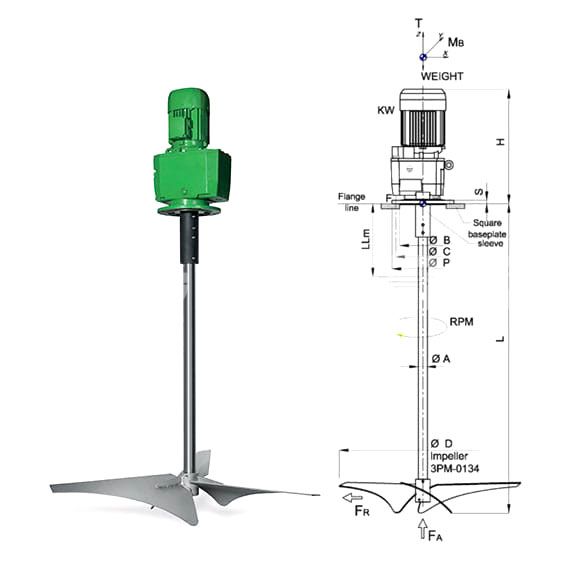

PRO-DO-MIX® ACT agitator is conceived to ensure optimal performance in the most diverse applications within waste water as well as other industrial processes.

3PM-0134 Hurricane 3-blade high-efficiency impeller has a high hydrodynamic profile, ensuring high flow rate and off-bottom solid suspension, resulting in an overall improvement of the mixing process even when dealing with high solids concentration and big volumes.

This hydrofoil profiled impeller can guarantee an optimal mixing with very low absorbed power. That helps avoiding swirl or vortex, making ACT agitator perfect for flash mixing, sludge equalization and denitrification.

Model KW RPM Ø D mm L maxi mm
ACT.11091 1.1 115 900 1600
ACT.11092 1.1 110 900 2500
ACT.15091 1.5 130 900 2000
ACT.15092 1.5 125 900 2500
ACT.22110 2.2 100 1100 3000
ACT.22111 2.2 120 1100 2600
ACT.30131 3 85 1300 3500
ACT.40131 4 100 1300 3000
ACT.30151 3 70 1500 3200
ACT.40151 4 85 1500 2600
The data indicated are not binding, PRO-DO-MIX® could change them at any time

Want more information?


    Privacy Disclaimer *Read and understood
    Marketing activities *I consentI do not consent

    3PM-0134 HURRICANE

    Flash Mixing Impellers

    High-efficiency three-blade impeller with high hydrodynamic profile. Thanks to its high flow rate, it is particularly suitable for flash mixing, sludge and solid suspension, equalization, etc.

    It can be manufactured with different diameters, 900 to 1500 mm.

    A completely disassemblable option is available as well, to ease the entering through the tank manhole.

    3PM-0134 HURRICANE
