Vertical Agitator - Turbine Agitators


Gearbox
planetary
Impeller type
4PBT45°
Motor power
1,1 ÷ 18,5
Output speed
20 ÷ 120
Impeller Ø
900 ÷ 2000
Max shaft length
3500
Max weight
1200

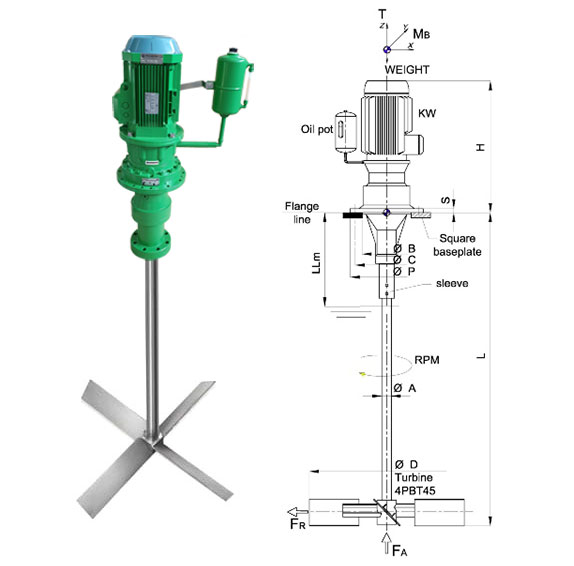

PRO-DO-MIX® BEP agitator with pitched blade turbine impeller is suitable for a wide range of applications, especially within chemical-physical WWTP.

Its 4PBT45° paddle turbine, combined with different output speed, can be used in a broad range of processes including equalisation, pH adjustment and other chemical solution handling. Its planetary gearbox allowed installations in big volumes or very high tanks.

Model KW RPM Ø D mm L maxi mm
BEP.11119 1,1 46 1100 3300
BEP.22121 2,2 46 1200 2800
BEP.30102 3 68 1000 3000
BEP.30121 3 53 1200 3300
BEP.30133 3 46 1300 2700
BEP.30203 3 22 2000 3100
BEP.40103 4 78 1000 3000
BEP.40121 4 68 1200 2700
BEP.40133 4 53 1300 2700
BEP.40143 4 46 1400 3300
BEP.40152 4 39 1500 3200
BEP.40163 4 36 1600 3200
BEP.40192 4 26 1900 3100
BEP.55121 5,5 62 1200 3300
BEP.55133 5,5 57 1300 3200
BEP.55162 5,5 39 1600 3200
BEP.55172 5,5 36 1700 3200
BEP.55182 5,5 31 1800 3100
BEP.55202 5,5 39 2000 2400
BEP.75102 7,5 92 1000 3000
BEP.75111 7,5 78 1100 3200
BEP.75123 7,5 113 1200 2700
BEP.75134 7,5 62 1300 3200
BEP.75144 7,5 57 1400 3300
BEP.75153 7,5 46 1500 3300
BEP.75163 7,5 46 1600 3200
BEP.75171 7,5 39 1700 2700
BEP.75182 7,5 36 1800 3100
BEP.75202 7,5 30 2000 3000
BEP.92113 9,2 92 1100 3200
BEP.92123 9,2 78 1200 3300
BEP.92133 9,2 68 1300 3200
BEP.92142 9,2 62 1400 2800
BEP.92152 9,2 53 1500 3200
BEP.92171 9,2 42 1700 2700
BEP.92192 9,2 36 1900 3100
BEP.A1102 11 109 1000 3000
BEP.A1161 11 50 1600 3200
BEP.A1181 11 42 1800 2900
BEP.A1201 11 36 2000 2500
BEP.A5153 15 65 1500 2700
BEP.A5161 15 55 1600 3000
BEP.A5182 15 46 1800 2400
BEP.A5191 15 62 1900 2600
BEP.A8122 18,5 96 1200 3300
The data indicated are not binding, PRO-DO-MIX® could change them at any time

Want more information?


    Privacy Disclaimer *Read and understood
    Marketing activities *I consentI do not consent

    4PBT45°

    Pitched Blade Agitator

    It is widely used in a broad range of applications due to its efficiency and cost-effectiveness. Within Water Treatment, pitched blade impellers are perfect for polyelectrolyte preparation and maturation, primary neutralization and pH adjustment.

    It can be manufactured with different diameters, 200 to 2000 mm.

    A completely disassemblable option is available as well, to ease the entering through the tank manhole.

    4PBT45°
