Loader
Gearbox
coaxial
Impeller type
3PM-0242
Motor power
0,55 ÷ 2,2
Output speed
20 ÷ 60
Impeller Ø
1600 ÷ 2200
Max shaft length
4000
Max weight
500

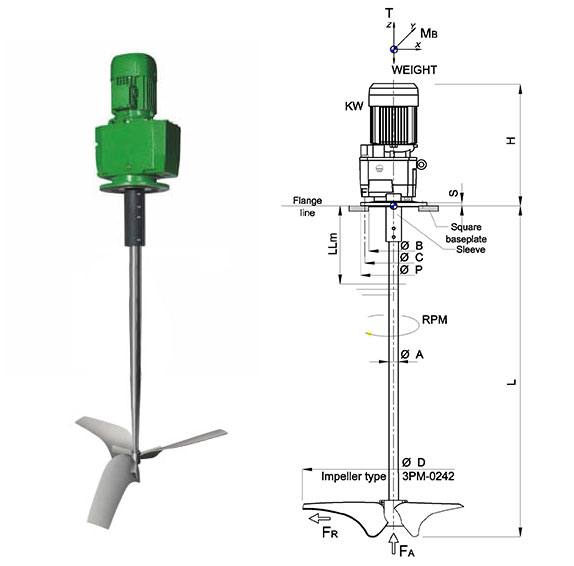

PRO-DO-MIX® vertical agitator BCB with coaxial gearbox is the solution for nitrification and denitrification needs in industrial applications, especially for all processes with small-medium volumes which contain fluids with filamentous sospended solids.

The impeller Master 3PM-0242, with high hydrodinamic profile, generates a centrifugal effect that prevents any form of clogging (anticlogging effect). The usage of this impeller is suitable for nitrification and denitrification applications, aerobic digestion and agitations inside anoxic systems.

Model KW RPM Ø D mm L maxi mm
BCB.05161 0,55 29 1600 3100
BCB.07181 0,75 26 1800 3000
BCB.07201 0,75 20 2000 2500
BCB.11161 1,1 37 1600 3100
BCB.11163 1,1 34 1600 4000
BCB.11182 1,1 31 1800 3900
BCB.11201 1,1 26 2000 2500
BCB.11203 1,1 27 2000 3800
BCB.11221 1,1 21 2200 2400
BCB.15163 1,5 40 1600 4000
BCB.15181 1,5 37 1800 2000
BCB.15182 1,5 34 1800 3400
BCB.15204 1,5 31 2000 3300
BCB.15222 1,5 25 2200 3200
BCB.22161 2,2 51 1600 3500
The data indicated are not binding, PRO-DO-MIX® could change them at any time

Want more information?


    Privacy Disclaimer *Read and understood
    Marketing activities *I consentI do not consent

    3PM-0242 MASTER

    Impellers for nitrification and denitrification in wastewater treatment

    Three-blade impeller with high hydrodynamic profile. Due to its special design, it can produce a centrifugal effect for which the impeller can be defined self-cleaning, thanks to this anti-clogging effect.

    It is specific for nitrification/denitrification, anaerobic digestion, mixing in anoxic systems and other applications with presence of fibres.

    It can be manufactured with different diameters, 1600 to 3500 mm.

    A completely disassemblable option is available as well, to ease the entering through the tank manhole.

    3PM-0242 MASTER
