Loader
Gearbox
planetary
Impeller type
3PM-0242
Motor power
1,1 ÷ 18,5
Output speed
15 ÷ 50
Impeller Ø
1600 ÷ 3400
Max shaft length
5500
Max weight
1200

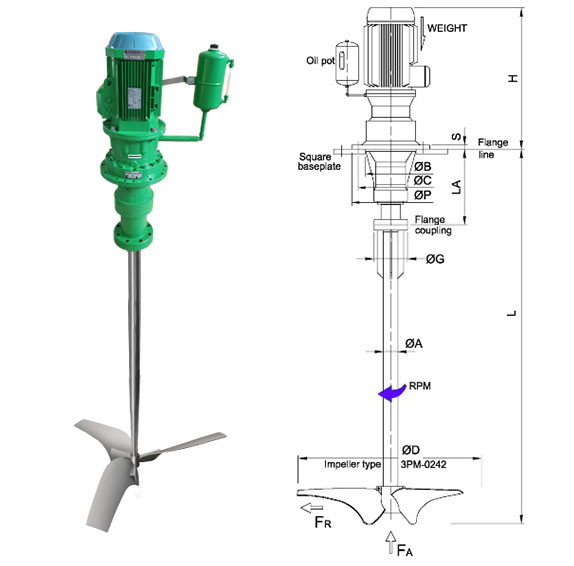

PRO-DO-MIX® vertical agitator BEB with planetary gearbox is the solution for nitrification and denitrification needs in industrial applications, especially for all processes with medium-big volumes which contain fluids with filamentous sospended solids.

The impeller Master 3PM-0242, with high hydrodinamic profile, generates a centrifugal effect that prevents any form of clogging (anticlogging effect). The usage of this impeller is suitable for nitrification and denitrification applications, aerobic digestion and agitations inside anoxic systems.

Model KW RPM Ø D mm L maxi mm
BEB.11164 1,1 36 1600 5000
BEB.11183 1,1 31 1800 4900
BEB.11202 1,1 26 2000 4800
BEB.11241 1,1 19 2400 2300
BEB.15161 1,5 39 1600 5000
BEB.15183 1,5 36 1800 4900
BEB.15201 1,5 31 2000 4800
BEB.15223 1,5 26 2200 4700
BEB.15243 1,5 22 2400 4600
BEB.22162 2,2 46 1600 5000
BEB.22181 2,2 39 1800 4900
BEB.22201 2,2 36 2000 4800
BEB.22263 2,2 21 2600 5000
BEB.22281 2,2 19 2800 4500
BEB.30223 3 31 2200 4700
BEB.30243 3 26 2400 4600
BEB.30282 3 22 2800 4000
BEB.30301 3 18 3000 4600
BEB.30321 3 17 3200 4500
BEB.40222 4 36 2200 4700
BEB.40242 4 31 2400 4600
BEB.40263 4 26 2600 5000
BEB.40283 4 21 2800 5000
BEB.40302 4 21 3000 5100
BEB.40342 4 18 3400 5000
BEB.55262 5,5 30 2600 5000
BEB.55282 5,5 25 2800 5000
BEB.55302 5,5 25 3000 5100
BEB.55322 5,5 21 3200 5000
BEB.75282 7,5 19 2800 5000
BEB.75342 7,5 21 3400 4500
BEB.92322 9,2 25 3200 5000
BEB.92343 9,2 23 3400 5000
BEB.A1301 11 19 3000 5100
BEB.A1321 11 30 3200 5000
BEB.A5341 15 43 3400 5000
The data indicated are not binding, PRO-DO-MIX® could change them at any time

Want more information?


    Privacy Disclaimer *Read and understood
    Marketing activities *I consentI do not consent

    3PM-0242 MASTER

    Impellers for nitrification and denitrification in wastewater treatment

    Three-blade impeller with high hydrodynamic profile. Due to its special design, it can produce a centrifugal effect for which the impeller can be defined self-cleaning, thanks to this anti-clogging effect.

    It is specific for nitrification/denitrification, anaerobic digestion, mixing in anoxic systems and other applications with presence of fibres.

    It can be manufactured with different diameters, 1600 to 3500 mm.

    A completely disassemblable option is available as well, to ease the entering through the tank manhole.

    3PM-0242 MASTER
