Recirculator in Brunei


These 4 XCC.22091.S.210/B agitators were installed in the Water Battle Project – U-5300 BLNG plant in the Sultanate of Brunei on behalf of Shell.
The agitators were designed and built for the revamping of the existing plant built in the 1970s. Previously, agitators with 4 inclined blades at fixed speed were installed.

PRO-DO-MIX® supplied 4 agitators with a 3PM-1084 impeller for the generation of an ascending axial flow, as required by the process; the gearmotor, equipped with an ATEX motor as specified, is suitable for operation powered by a frequency inverter. The possibility of varying the RPM results in a highly versatile plant, as the parameters of the incoming wastewater are not stable.

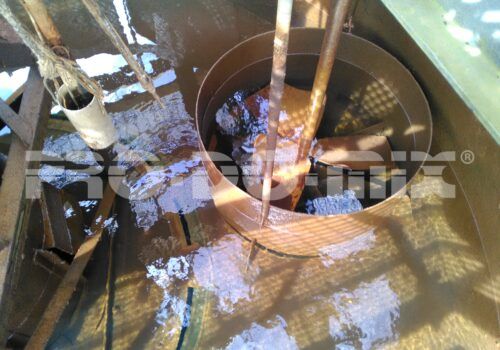

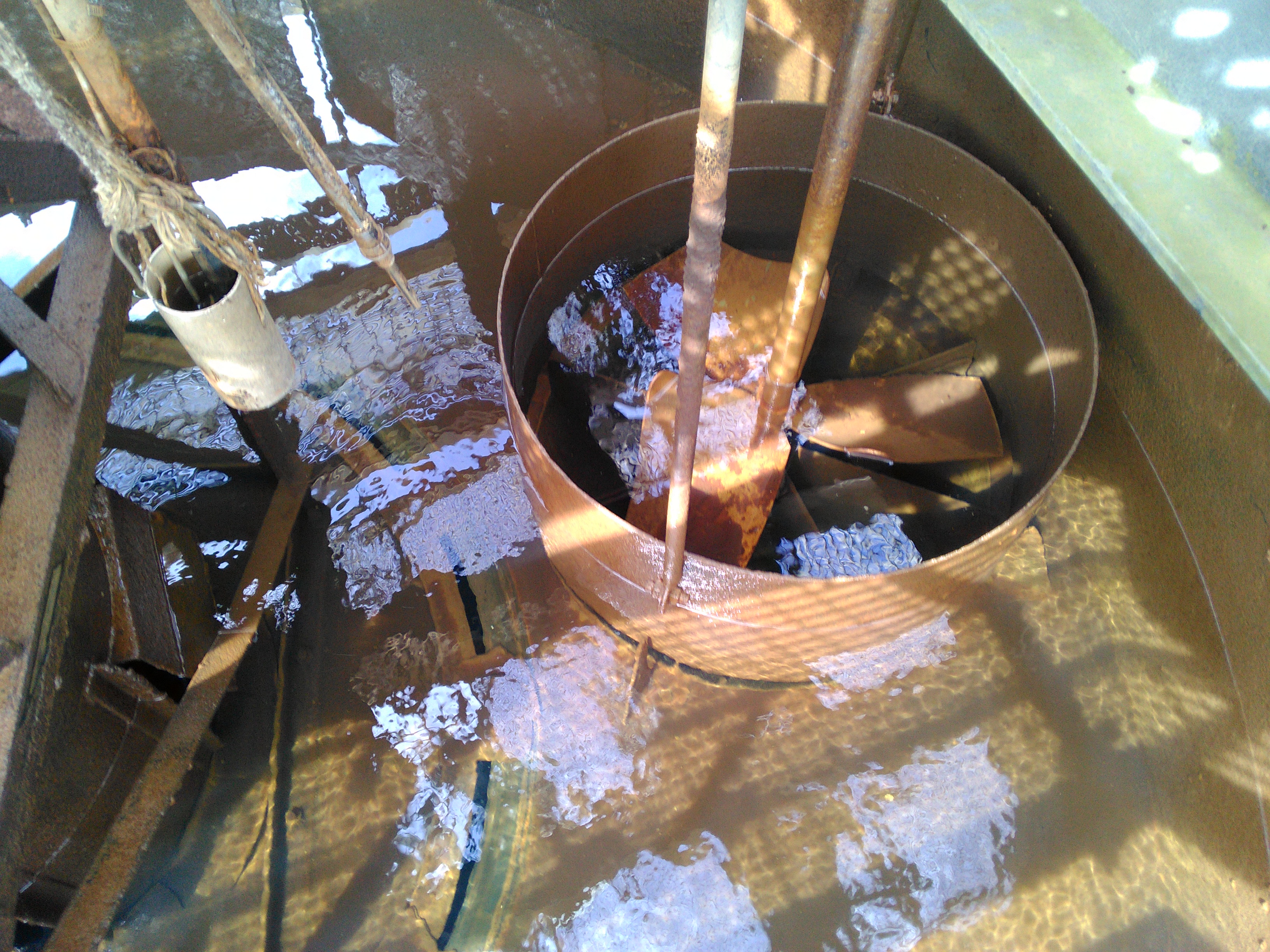

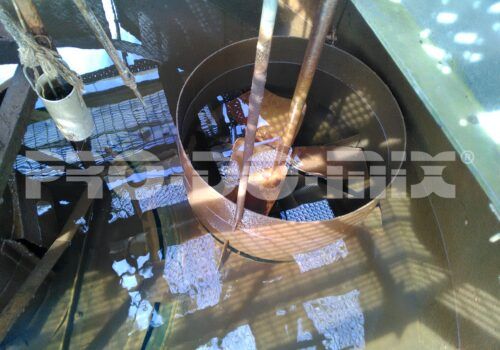

The agitator is installed in a recirculator with a diameter of 27 m and is designed to help flocculation in the central channel.

Recirculator in Brunei

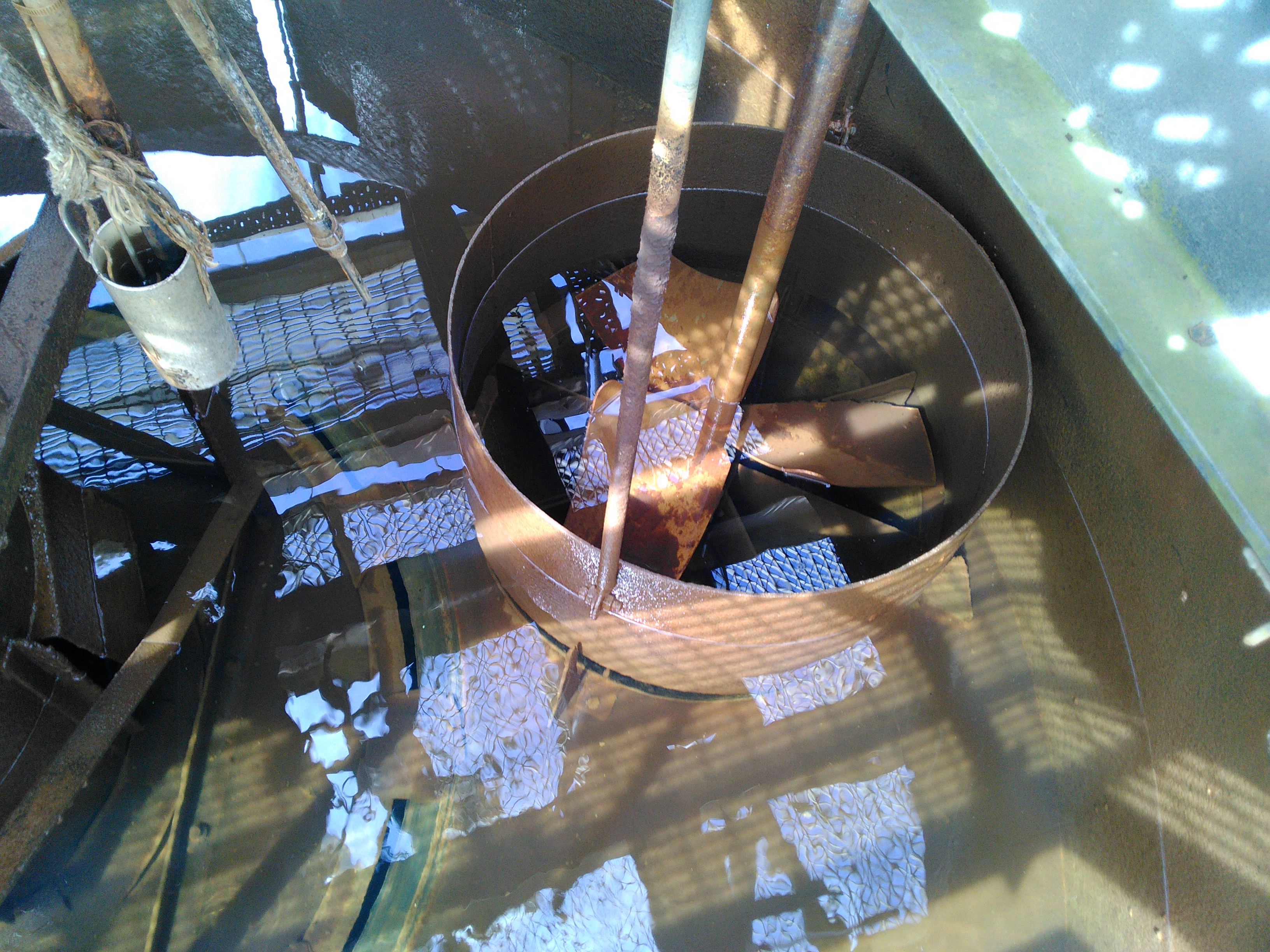

IMG_20200709_150635
Share On
Share On

3PM-1084 EXCELLENT

Giranti per agitatori industriali

Girante a tre pale con un alto profilo idrodinamico: girante industriale con il più basso indice di potenza in proporzione all’indice di portata. Producendo quindi la più alta portata alla minor velocità periferica, è perfetta per creare grandi volumi di ricircolo.

Caratteristiche

Diametri disponibili da 200 a 3500 mm

Disponibile una versione smontabile in 3 parti

3PM-1084 EXCELLENT
